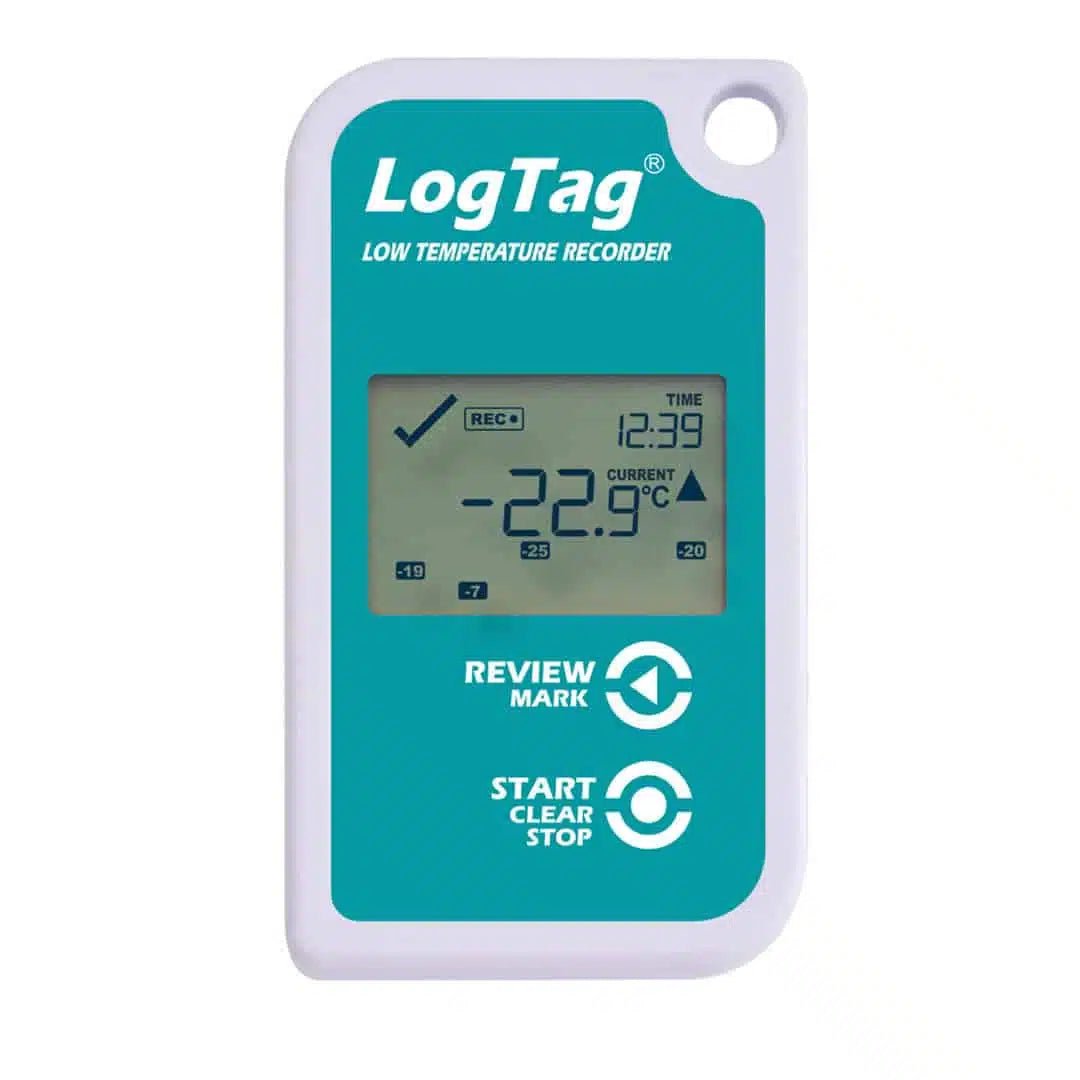

LOGTAG Low Temperature Data Logger
LOGTAG Low Temperature Data Logger
- Vendor
- Control Solutions
- SKU:
- TREL30-16R_EA
The LOGTAG Low Temperature Data Logger features a built-in audible alarm that sounds five-second bursts using three distinct decibel tones. Its new, clear LCD display shows a 30-day summary in an easy-to-understand calendar format. The auto-pause function halts alarm and data processing when the external probe is unplugged. Users can quickly record inspection marks with a button press. The external probe includes a high-quality gold-plated connector, and data downloads in under 10 seconds, ensuring efficient monitoring and analysis.
The Control Solutions TREL30-16 Low-Temperature Monitoring Kit includes:
- TREL30-16 Data Logger
- (1) (Low-Temp single point) NIST Traceable Certificate of Calibration, compliant to ISO/IEC 17025:2017
- (1) SST 22mm exposed tip, 5mm OD, 3 meter cable length
- (1) Installation/Mounting Kit (includes wall mounting bracket)
- (1) Glass Bead Bottle Buffer Kit
- (1) Extra replaceable battery
The TREL30-16 Low-Temp Monitoring Kit measures and stores up to 15,905 temperature readings from an External Probe.
LOGTAG Low Temp Data Logger Key Features:
- External probe temperature range: −90 °C to +40 °C (−130 °F to +104 °F)
- 30-day statistical summary on LCD display
- Audible alarm and visual alerts for temperature breaches
- User-configurable alarm limits
- Stores up to 15,905 readings (~66 days at 6-minute intervals)
- Logging interval: 30 seconds to 60 minutes
- Start options: push-button, specific date/time, or delay
- Auto-pause when the probe is disconnected
- Push-button inspection marking
- Interchangeable external probe with PTFE-coated cable and gold-plated connector
- Fast data download via LogTag USB cradle (less than 10 seconds)
- Complies with FDA 21 CFR Part 11 and EU Annex 11
- User-replaceable 3V CR2032 battery (approx. 1-year lifespan)
- Rugged, compact, IP61-rated polycarbonate case
- Operating temperature (logger): −20 °C to +40 °C
- Storage temperature: −10 °C to +40 °C
Specifications:
| Part Number | TREL30-16 |
|---|---|
| Brand | LogTag |
| Weight | 0.75 lbs |
| Dimensions | 4 × 4 × 6 in |
| Display |
LCD Display |
| Connectivity |
USB |
| Function |
Monitoring, Temperature, Vaccine |
| Temperature Range |
-40°C to 0°C, 0°C to 40°C, Below -40°C |
| Capabilities |
Temperature, Vaccines, VFC Compliant |
| Recording Capacity |
15,905 temperature readings. 66 days @ 6min logging. |
| Logging Rate |
Configurable from 30 seconds to hourly. |
| Sensor Cable Length |
Standard: 0.5m (19″). Extended: 3m (9’10") (Recommended maximum). |
| Download time |
Typically less than 10 seconds for full memory (15,905 readings), depending on computer or readout device used.
|
| Battery life |
1 year storage, followed by 1 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly). NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible. |
| Power Source |
3V CR2032 (LiMnO2) coin cell battery, user replaceable. |
