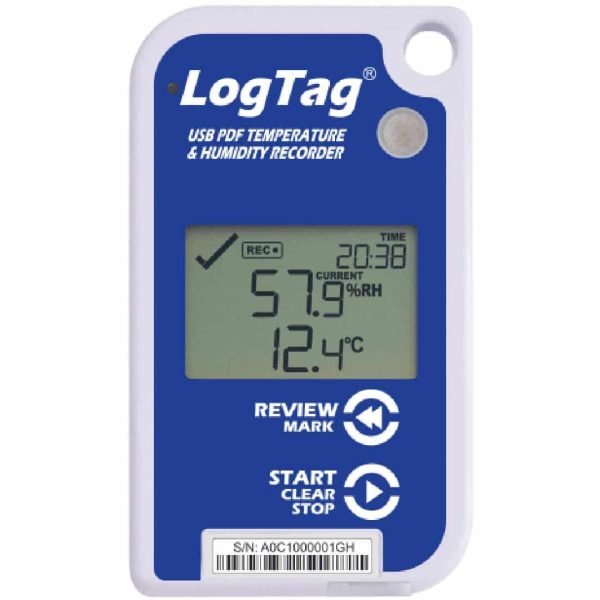

LOGTAG Temperature & Humidity Logger With Display
LOGTAG Temperature & Humidity Logger With Display
- Vendor
- Control Solutions
- SKU:
- UHADO-16_EA
The LogTag® UHADO-16 Temperature & Humidity logger measures and stores up to 16,000 sets of high resolution humidity and temperature readings over a measurement range of 0~100% RH and -30°C to +70°C (-22°F to +158°F).
- Record and display Temperature & Humidity readings simultaneously
- Up to 16,000 sets of recordings – enough for the longest trip
- Real time clock provides date/time stamp for every recording
- USB micro-port for direct connection to a computer
- Automatic generation of a PDF report without special software
- Supports fast download using standard docking station and WiFi Wall Mount Interface
- User configuration for alarm setting, logging interval, trip duration etc.
- In transit inspections can be recorded at the push of a button
- User replaceable CR2032 coin cell battery
The UHADO-16 can be connected directly to a computer for configuration and data download using a standard Micro-USB to USB cable.
LOGTAG Temperature & Humidity Logger Key Features:
-
Records 16,000 temperature/humidity readings simultaneously.
-
Displays real-time data, alarms, and trip statistics.
-
USB/WiFi-enabled with automatic PDF report generation.
-
Configurable alarms, logging intervals via free software.
-
User-replaceable battery, ideal for long shipments.
Specifications:
| Part Number | UHADO-16 |
|---|---|
| Brand | LogTag |
| Weight | 0.6 lbs |
| Dimensions | 5 × 9 × 9 in |
| Accuracy |
Calibrated accuracy of ±0.3 Deg C from +40 to -40°C, and 2% RH from 20%RH to 80% RH |
| Alarming |
Audible and visual alarm for out-of-range temperatures. |
| Display |
Displays low battery indicator, current temperature, minimum and maximum temperature, alarm, duration of alarm, time, recording, stopped, and summary of days collected. |
| Connectivity |
USB |
| Function |
Alerts, Humidity, Monitoring, Temperature |
| Temperature Range |
-40°C to 0°C, 0°C to 40°C |
| Capabilities |
Humidity, Temperature |
| Recording Capacity |
Memory storage of 16,129 pairs of humidity and temperature readings. |
| Logging Rate |
User programmable logging rate from every 30 seconds to hourly. |
| Download time |
Typically less than 10 seconds for full memory, depending on computer or readout device used.
|
| Battery life |
1 year of normal use (based on 15 minute logging, download data monthly). Replaceable battery. |
| Power Source |
3V CR2032 (LiMnO2) coin cell battery, user replaceable. |
| Connection Interface |
Interface Cradle or USB 2.0 / Micro USB plug (not included). |
