LOGTAG Data Logger With Smart Probe
LOGTAG Data Logger With Smart Probe
- Vendor
- Control Solutions
- SKU:
- VFC800-USB

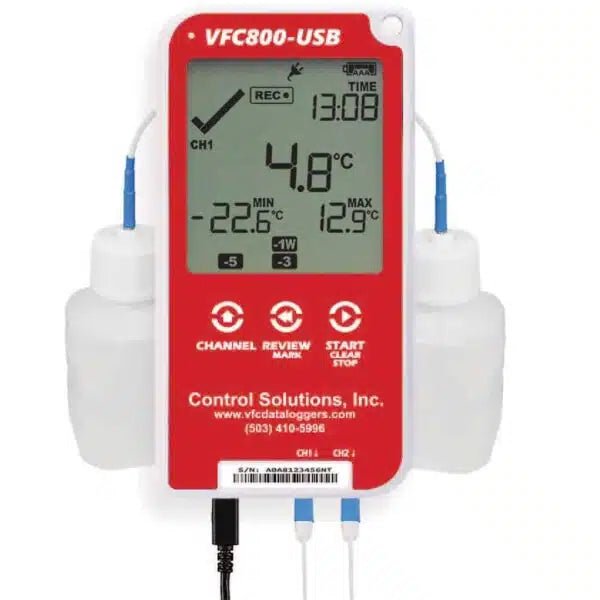

The VFC800-USB Temperature Recorder measures and stores up to a total 32,000 temperature readings, 16,000 readings per channel. The logger supports the ST100 and SP-800 probes and can be used on one or both channels if required.
- Hot Swappable Smart Probe(s), eliminate the need to disconnect and send in your data logger.
- Download data via CS VTMC or as a PDF via USB.
- View current temperature and latest Min-Max temperature at a glance.
- Check and reset Min-Max temperature readings at any time.
- Audible alarm and flashing red LED signals a temperature excursion.
- View alarm status for up to 30 days at a glance.
- Powered via a standard plug-in power adaptor and a USB cable.
- Backup power provided by 2x AAA batteries (user replaceable).
Data Logger With Smart Probe Key Features:
-
Hot-swappable smart probe eliminates data logger disconnection.
-
Downloads data via CS VTMC or USB PDF.
-
Displays current, min-max temperatures, 30-day alarm status.
-
Audible alarm, LED signals temperature excursions, user-resettable.
-
Stores 32,000 readings, supports ST100/SP-800 probes.
Specifications:
| Part Number |
VFC800-USB VFC800-USB-2 |
|---|---|
| Brand | LogTag |
| Weight | 1.75 lbs |
| Dimensions | 3.5 × 8.5 × 9 in |
| Number Of Probes |
Dual channel with dual 10 ft Probes, Single channel with 10ft Probe, Single channel with 5ft Probe, Calibrated 10ft Smart Probe, Calibrated 5ft Smart Probe |
| Accuracy |
Calibrated accuracy of ±0.3 Deg C from +99 to -40°C. |
| Alarming |
Audible and visual alarm for out-of-range temperatures. E-mail and Text notifications with cloud service
|
| Connectivity |
USB |
| Function |
Monitoring, Temperature, Vaccine |
| Temperature Range |
-40°C to 0°C, 0°C to 40°C, 40°C to 80°C, Above 80°C |
| Capabilities |
Temperature, Vaccines, VFC Compliant |
| Recording Capacity |
Memory storage of 16,129 readings. |
| Logging Rate |
User programmable logging rate from every 30 seconds to 18 hours. |
| Remote Probe |
Removable remote smart probe mounted in a shatter proof bottle in glycol solution. |
| Sensor Cable Length |
Standard 5' long. |
| Download time |
Typically less than 10 seconds. |
| Battery life |
Typically 12 months of standard operation (CR2032). AAA battery also up to 2 months. |
| Power Source |
5V via micro USB socket or, 2 x 1.5V AAA alkaline batteries. CR2032 LiMg coin cell (backup logging function and smart probe only). |
| Connection Interface |
USB 2.0 / Micro USB Socket. IEEE802.11 / WPA/WPA2 Security |
